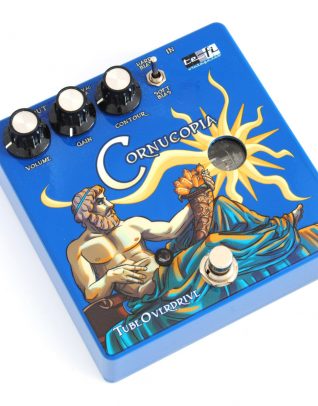

CORNUCOPIA Keys – Keyboards Tube Preamplifier

CategoriesOverdrive
ForElectric Piano, Electronic Organ, Synthesizer
Product IDCOKSTD01E
AvailabilityAvailable
Price268€

Buy on

Overview

The Cornucopia Keys project was developed starting from the Cornucopia Guitar with the idea of ​​obtaining a preamplifier with 12AX7 tube specifically dedicated to Tonewheel organs (Hammond), sixties Combo organs (Farfisa, Vox), Electric Pianos (Rhodes, Wurlitzer) and Synthesizers . Unlike the electric guitar, a keyboard instrument indeed requires a much wider response band, in order to totally preserve the harmonic content of the signal, and also requires a reduced dynamic field when entering overdrive conditions. By bringing the Gain command to high values, you can get a creamy and characterized overdrive from the Cornucopia Keys, retaining high sonic transparency that behaves exactly like a tube amp when a large signal is applied in. The Volume and Gain commands allow you to adjust/match the input levels with output and choose the point where you want to trigger the overdrive, while the Contour command can set a first general equalization of the sound. The Bias lever-switch acts on the tube bias and allows you to choose two different overdrive behaviors: creamy in "Soft" position and fuzzy in "Hard" mode.

Features

The working of Cornucopia Keys has also been tested on clones and current emulators (digital, analog and vitrual analog) of keyboard instruments. Thanks to the high bandwidth, the Cornucopia Keys can also be used as a characterizing preamplifier, or in light overdrive, as an enhancer of harmonics in the treatment of a track (even drums or voice) during the recording.

Input impedance 50 kOhm
Output impedance 470 Ohm
Max Gain +45dB
Tube Sovtek 12AX7WA
Signal switching True-bypass
Supply voltage/Current absorption 12VAC/1000mA (alimentatore incluso con il pedale)
DC plug connection Tip 2.5mm
Enclosure material Hammond enclosure, aluminium die-cast
